PostSubject: Out of bounds?   Out of bounds? I_icon_minitimeMon Nov 16, 2015 9:45 pm

I been experimenting for my next IT server. I want to use the feral heart canine models, i added the body and it was fine, i wanted to make the ears replace the head, as a way to "Hide" the IT heads, but when i added the ears i got this:

Out of bounds? 2i9tufp
Back to top Go down
Claire
Very Helpful
Very Helpful
Claire

Game username : Diadelot
Female Posts : 327
Join date : 2015-03-03
Age : 18

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeMon Nov 16, 2015 10:14 pm

Probably because the oIT head uses three submeshes that are required if you fon't want to crash. The FH canine ears probably uses only one submeshe wich is probably why it's crashing, dunno.
Back to top Go down
http://missdiealot.deviantart.com/
Centelleo
Banned
Centelleo

Game username : Centelleo
Server : Foreign Entity
Female Posts : 328
Join date : 2012-01-10

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeMon Nov 16, 2015 10:19 pm

Can you import the mesh + skeleton in blender with the plugins somewhere on here and export back out as .mesh again? That way it should be compatible with IT.
Back to top Go down
GlaciaTheWolf
Animator
Animator
GlaciaTheWolf

Game username : Glacia, GlaciaIceWolf, GlaciaTheWolf
Server : DD (member) Wolf soul (member)
Female Posts : 1051
Join date : 2013-12-09
Age : 23
Location : Ohio

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeMon Nov 16, 2015 11:31 pm

ive tried to use that importer, it never worked
Back to top Go down
Nakti
®
®
Nakti

Game username : Nakti
Server : World of Pandora
Female Posts : 166
Join date : 2012-08-24
Age : 24
Location : black celebration

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeTue Nov 17, 2015 2:32 pm

Just add two more submeshes (one - for teeth, one - for eyes).
In blender you can add new materials in properties - materials section and assign the needed parts to them (remember to remove that parts from fir, they will export as different submeshes.

If you have only ears, try adding a 1-3 faces to that new materials, so that they wouldn't be empty - if any material (any submesh) has no vertex, game crashes.

Or just comment all lines containing mHeadEnt->getSubEntity in the source and recompile.
Back to top Go down
GlaciaTheWolf
Animator
Animator
GlaciaTheWolf

Game username : Glacia, GlaciaIceWolf, GlaciaTheWolf
Server : DD (member) Wolf soul (member)
Female Posts : 1051
Join date : 2013-12-09
Age : 23
Location : Ohio

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeTue Nov 17, 2015 5:42 pm

Thank yoy. Ill experiment with this information when i get onmy laptop (not fixed yet ill edit this if it works)
Back to top Go down
Witacha
3D Modeler
3D Modeler
Witacha

Game username : Witacha
Server : Land Of The Wolves(Owner)
Female Posts : 1247
Join date : 2012-06-15
Age : 20
Location : France

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeTue Nov 17, 2015 5:49 pm

oh feral heart canine models :v good luck !
Back to top Go down
http://witacha-asukata.deviantart.com/
GlaciaTheWolf
Animator
Animator
GlaciaTheWolf

Game username : Glacia, GlaciaIceWolf, GlaciaTheWolf
Server : DD (member) Wolf soul (member)
Female Posts : 1051
Join date : 2013-12-09
Age : 23
Location : Ohio

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeWed Nov 18, 2015 3:17 am

nakti wrote:
Just add two more submeshes (one - for teeth, one - for eyes).
In blender you can add new materials in properties - materials section and assign the needed parts to them (remember to remove that parts from fir, they will export as different submeshes.

If you have only ears, try adding a 1-3 faces to that new materials, so that they wouldn't be empty - if any material (any submesh) has no vertex, game crashes.

Or just comment all lines containing mHeadEnt->getSubEntity in the source and recompile.

Ok, can you tell me where to comment that out? theres alot of them, lol.
Back to top Go down
Nakti
®
®
Nakti

Game username : Nakti
Server : World of Pandora
Female Posts : 166
Join date : 2012-08-24
Age : 24
Location : black celebration

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeWed Nov 18, 2015 5:30 am

All of them! I suppose...
This might cause errors or just not very right behavior, but if you won't comment them, they will cause errors 100%.
Back to top Go down
GlaciaTheWolf
Animator
Animator
GlaciaTheWolf

Game username : Glacia, GlaciaIceWolf, GlaciaTheWolf
Server : DD (member) Wolf soul (member)
Female Posts : 1051
Join date : 2013-12-09
Age : 23
Location : Ohio

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeWed Nov 18, 2015 6:59 pm

Every one of them, not even leaving one out? because i see with the bodies there are at least one, ior would it be possible to make 2 other meshes inside the ears?
Back to top Go down
Nakti
®
®
Nakti

Game username : Nakti
Server : World of Pandora
Female Posts : 166
Join date : 2012-08-24
Age : 24
Location : black celebration

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeWed Nov 18, 2015 9:17 pm

All ones you have with headent, and that have number x not 0 (mHeadEnt->getSubEntity(x)). Game tries to load submeshes from head, but your head doesn't have them.

OR

If you have access to blender files of ears, you should edit them: add two new materials in the properties. Select a random face in edit mode, go to first material and press "remove" on properties screen; go to second material and press "assign". Then select another face, "remove" it from first material and assign to the third one. Then try to export and add in game. You don't need to edit the source using this method.
Back to top Go down
GlaciaTheWolf
Animator
Animator
GlaciaTheWolf

Game username : Glacia, GlaciaIceWolf, GlaciaTheWolf
Server : DD (member) Wolf soul (member)
Female Posts : 1051
Join date : 2013-12-09
Age : 23
Location : Ohio

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeWed Nov 18, 2015 10:18 pm

im trying to fallow the second method, can u provide screenshots?
Back to top Go down
Nakti
®
®
Nakti

Game username : Nakti
Server : World of Pandora
Female Posts : 166
Join date : 2012-08-24
Age : 24
Location : black celebration

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeWed Nov 18, 2015 10:32 pm

My instructions were a bit incorrect, sorry.

These are for blender v2.7.

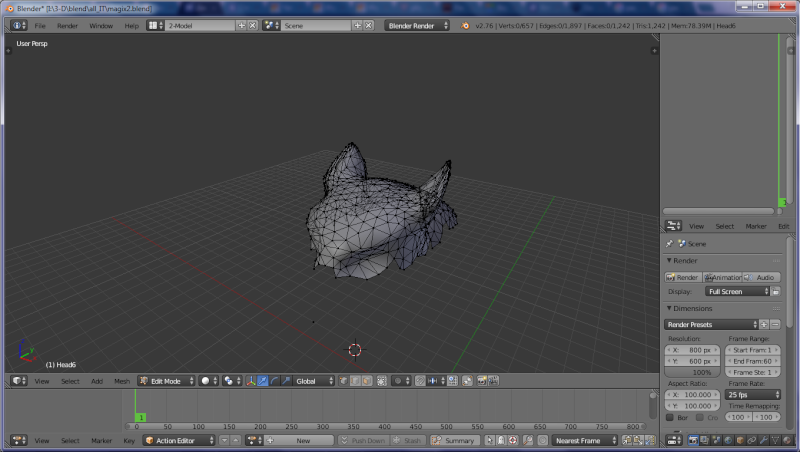

You have a head.
Out of bounds? Head110
Go to the materials page (properties menu).
Out of bounds? Head310
If you have here 3 materials, skip next step.
Add 2 more materials here.
Out of bounds? Head610
In edit mode select any face, select second material and press "assign" button.
Out of bounds? Head910
Than do the same to the third material.
Back to top Go down
Tigg

Tigg

Game username : Tigg
Server : Impressive Title by Tigg
Female Posts : 156
Join date : 2017-08-01
Age : 35
Location : Austria

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeFri Sep 14, 2018 3:11 pm

Sorry for unburieng this out but i have the same problem and really dontu nderstand how to fix that.

So, the head i wanted to use has the 3 materials assigned..

headmat
teethmat
eyemat

In exactly this manner of position. head first, teeth second and eye last. Now i still get that error and have no clue why or how to fix that since that head should be all okay Sad

Actually i have read all the solves by now but i havent changed my code for any special heads that require new code (cause i dont know which code is required, cant find that part).

Any help please?


EDIT:

I also made sure that in blender the correct faces for headmat, teethmat and eyemat are selected and assigned.
Back to top Go down
http://www.tiggcreations.com
Nakti
®
®
Nakti

Game username : Nakti
Server : World of Pandora
Female Posts : 166
Join date : 2012-08-24
Age : 24
Location : black celebration

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeFri Sep 14, 2018 7:54 pm

Do original heads work fine?
Back to top Go down
Tigg

Tigg

Game username : Tigg
Server : Impressive Title by Tigg
Female Posts : 156
Join date : 2017-08-01
Age : 35
Location : Austria

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeSat Sep 15, 2018 8:57 am

Nakti wrote:
Do original heads work fine?

Yes, actually its a completely new head with new body etc. like my raptor.

I compared the xml's and they look fine? the error seems to only happen when more mats or submeshes are in the mesh but that isnt the case and now im really confused.
Back to top Go down
http://www.tiggcreations.com
Tigg

Tigg

Game username : Tigg
Server : Impressive Title by Tigg
Female Posts : 156
Join date : 2017-08-01
Age : 35
Location : Austria

Out of bounds? Empty
PostSubject: Re: Out of bounds?   Out of bounds? I_icon_minitimeSat Sep 15, 2018 10:29 am

EDIT:

I got it to work!

Went in to blender again and deletet all materials, reassigned a second time.
Then exporting it. The export troubled up the material again, making eye first, rearranged it into headmat, teethmat, eyemat and now its working. few!

Thanks to everyone anyways! <3
